New publication assessing rotor configuration trade-offs in quad-rotor forward flight

A new scientific article has been published in Drones:

Numerical Analysis on the Influence of Rotor Configuration on Quad-Rotor Unmanned Aerial Vehicle Flight Performance

Within the framework of the ENOLA project, this work investigates how different rotor layouts influence the aerodynamic efficiency of a quad-rotor UAV during forward flight. The study combines steady-state CFD, a simple Proportional-Integral trim model, and actuator disk rotor modeling to explore a broad range of operating conditions with limited computational effort.

Objectives of the research

Systematically evaluate the performance trade-offs of unactuated tilted rotor configurations in forward flight.
Quantify the impact of rotor placement on endurance, range, and maximum speed.
Identify the aerodynamic mechanisms behind the observed trends.
Propose a modified tilted configuration that mitigates some of the drawbacks of standard tilted designs.

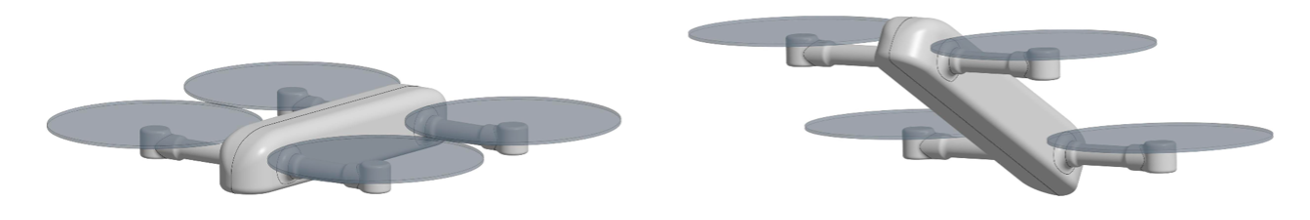

Figure 1. Computer-generated images of the standard non-tilted (left) and standard tilted (right) rotor configurations considered in the study.

The research shows that tilted rotors can reduce the power required in forward flight at moderate to high airspeeds, but they can also introduce a penalty at low speed. A key factor behind this behavior is the interaction between rotor wake structures and the aircraft airframe, which changes with configuration and flight condition.

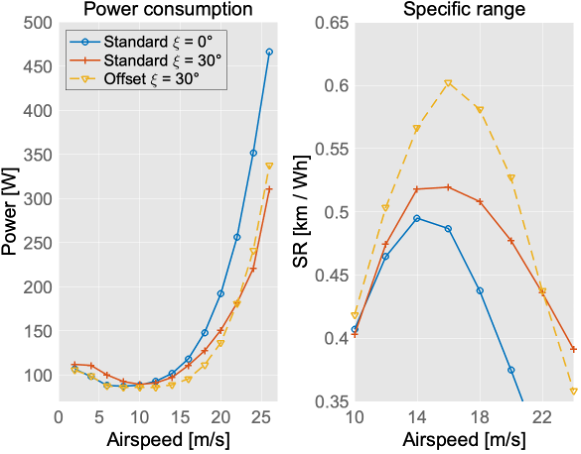

Figure 2. Power consumption and specific range for the different rotor configurations studied.

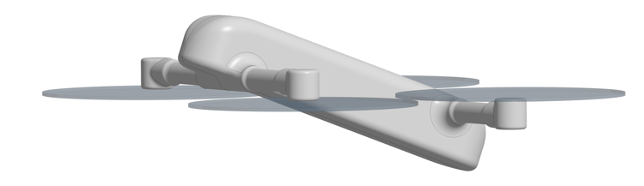

Figure 3. Offset tilted configuration proposed to reduce wake interactions and reduce the angular-rate differential between rotors.

The wake flow fields reveal substantial differences among the configurations, particularly at higher airspeeds and in the downstream interaction zone between the rotors and the fuselage. The findings indicate that a slight vertical offset between the front and rear rotors can reduce some of the drawbacks of the tilted layout while preserving its efficiency gains.

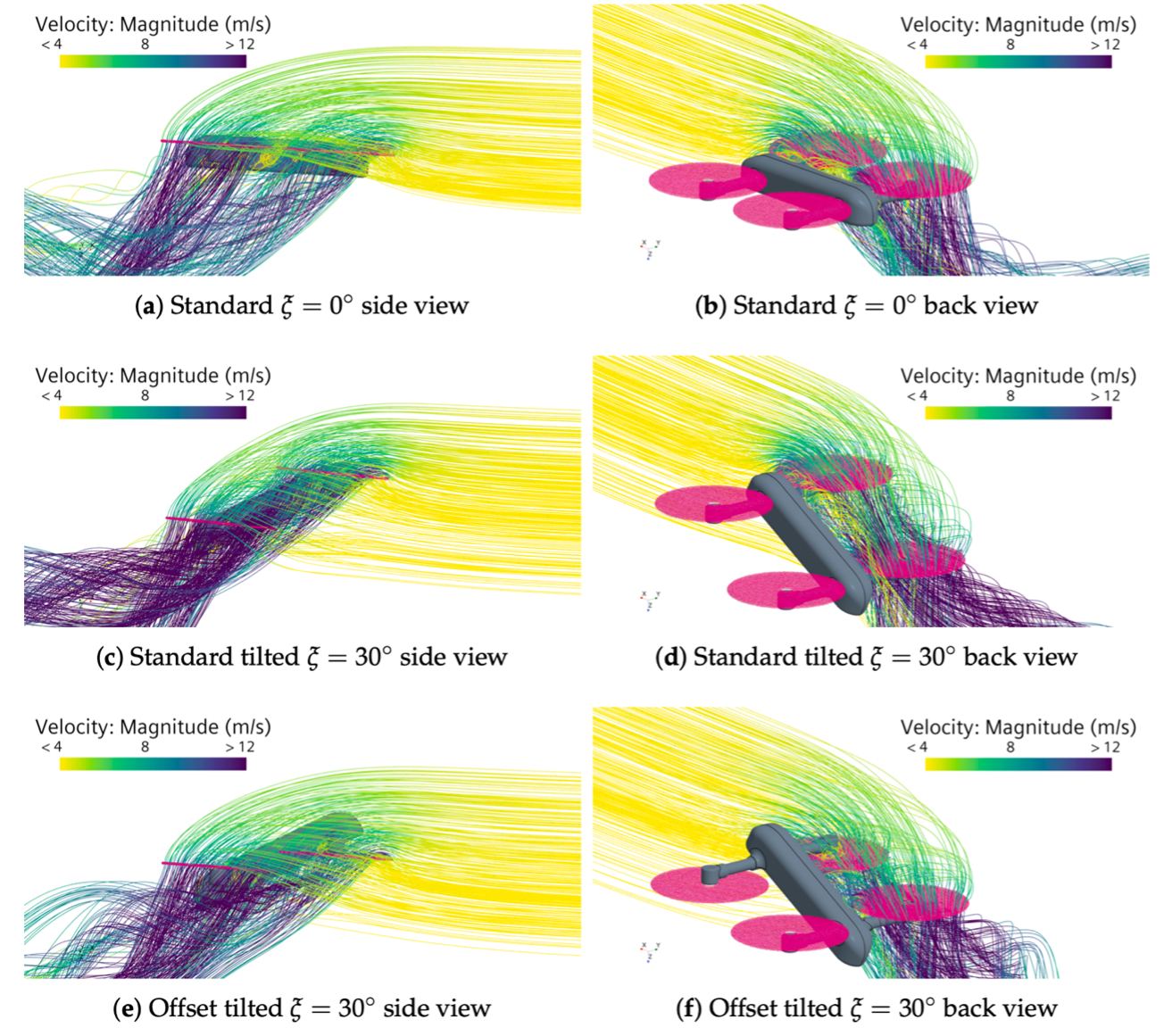

Figure 4. Velocity magnitude and streamlines for the standard and offset tilted configurations at an airspeed of 4 m/s.

Main findings of the research

Tilting the rotors reduces power consumption at moderate and high airspeeds, but introduces a small penalty at low speeds.
Moving the rear rotors slightly higher than the front rotors mitigates several of the drawbacks of the standard tilted configuration.
Alternative rotor layouts can reduce power demand by more than 29% above 20 m/s, increase specific range by up to 22%, and improve endurance by 2.9%.
The proposed offset tilted configuration offers a more balanced trade-off between efficiency and aerodynamic behavior.

Contribution to the ENOLA project

This work applies the simulation framework developed within ENOLA to the aerodynamic optimization of small-scale multi-rotor UAVs. By quantifying the performance trade-offs among alternative rotor configurations, it contributes to the project’s broader aim of improving the efficiency and sustainability of future unmanned aircraft concepts.
